1. Application

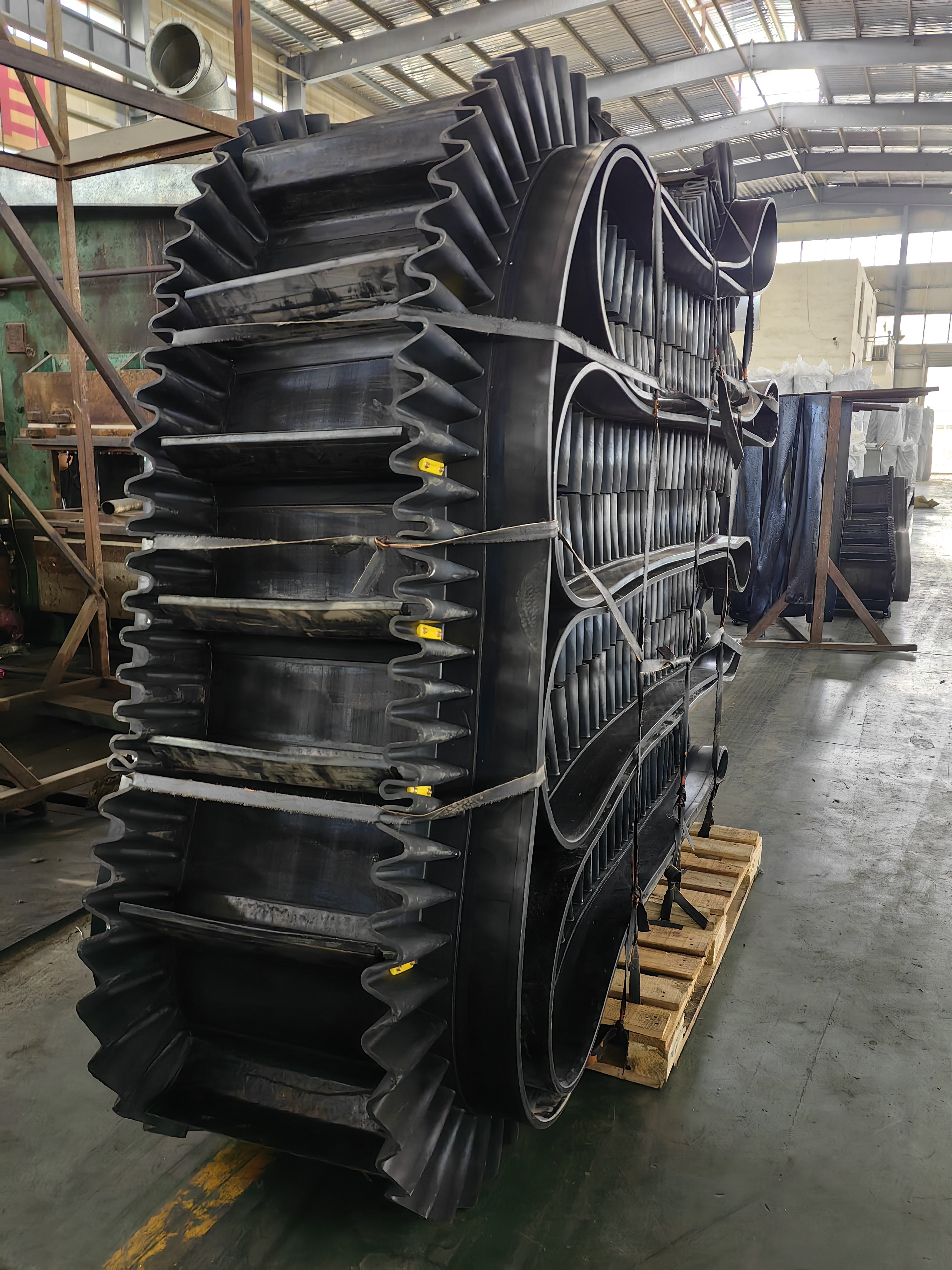

Due to space limitation or in case of lifting materials at large slope, the sidewall conveyor belt is often used to prevent scatter of conveyed materials. It is suitable for conveying materials at a large slope from 0°to 90°.
2. Features
1.Materials can be conveyed at a large slope up to 90°.
2.The belt has large loading capacity and the materials will not be scattered.
3.The slope of conveying can be changed from horizontal to sloping, or from sloping to horizontal
4.The conveyor is simple in structure, flexible in arrangement and occupying only a small area
5.The carcass material and strength of the belt can be selected according to requirements of users. We have the following carcass materials: Nylon (NN),and Polyester(EP).
3. Sidewall and Cleat Specification
Item | Type | ||||||||
Sidewall specification
 | H(mm) | 60 | 80 | 100 | 120 | 160 | 200 | 240 | 300 |
Wave distance(mm) | 42 | 42 | 42 | 42 | 65 | 65 | 65 | 72 | |
Sw(mm) | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 90 | |
| Cleat specification
 | H(mm) | 55 | 75 | 90 | 110 | 140 | 180 | 220 | 280 |
Sw(mm) | 100 | 100 | 100 | 100 | 110 | 110 | 110 | 200 | |
Drum diameter(mm) | 400 | 500 | 630 | 630 | 800 | 1000 | 1000 | 1250 | |
The effective width of diaphragm plate should be decided according to the real width of the base and margin. | |||||||||
