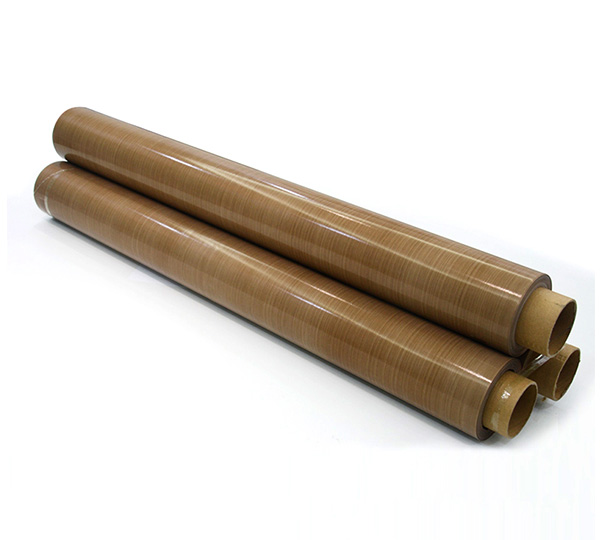

Teflon Coated Fiberglass Fabric Use best fiberglass as the weaving material to knit into high-grade fiberglass basic cloth, coating PTFE resin, making it into various PTFE high temperature resistance clothes with different thickness and width.
Product Details:
Teflon Coated Fiberglass Fabric Use best fiberglass as the weaving material to knit into high-grade fiberglass basic cloth, coating PTFE resin, making it into various PTFE high temperature resistance clothes with different thickness and width. It is widely used in various fields such as aviation, food, chemicals, electronics, insulation, construction ,grinding wheel, mechanical and so on.It can be made into ifferent thickness and width and colors.
1. Good temperature resistance:24hours working temp from -140°C to 260°C, safety use within 380°C.
2. Excellent non-sticky property: It easier to remove those resin, dope, oil and other sticky things.
3. Top high chemical resistance: Resist strong acid, strong alkali, aqua regia, various organic solvents,
and almost all pharmaceutical items.
4. Excellent insulation property, high weatherability, anti-aging, anti-UV ray. Fire proof.
Item No | Color | Thickness | Max width | Weight | Tensile strength | Temperature |
9008AJ | brown | 0.08mm | 1250mm | 165g/m2 | 130/120N/cm | -140-260℃ |
9008BJ | black | 0.08mm | 1250mm | 170 g/m2 | 130/120N/cm | -140-260℃ |
9008Y | black | 0.08mm | 1250mm | 185 g/m2 | 130/120N/cm | -140-260℃ |
9013AJ | brown | 0.13mm | 1250mm | 260 g/m2 | 220/190N/cm | -140-260℃ |
9013BJ | black | 0.13mm | 1250mm | 275 g/m2 | 220/190N/cm | -140-260℃ |
9013Y | black | 0.13mm | 1250mm | 290 g/m2 | 220/190N/cm | -140-260℃ |
9018AJ | brown | 0.18mm | 1250mm | 395 g/m2 | 330/250N/cm | -140-260℃ |
9018BJ | black | 0.18mm | 1250mm | 415 g/m2 | 330/250N/cm | -140-260℃ |
9025AJ | brown | 0.25mm | 2800mm | 490 g/m2 | 410/330N/cm | -140-260℃ |
9025BJ | black | 0.25mm | 2800mm | 510 g/m2 | 410/330N/cm | -140-260℃ |
9035AJ | brown | 0.35mm | 3200mm | 660 g/m2 | 560/445N/cm | -140-260℃ |
9035BJ | black | 0.35mm | 3200mm | 680 g/m2 | 560/445N/cm | -140-260℃ |
9040AJ | brown | 0.40mm | 3500mm | 780 g/m2 | 820/500N/cm | -140-260℃ |
9040BJ | black | 0.40mm | 3500mm | 820 g/m2 | 820/500N/cm | -140-260℃ |
9065AJ | brown | 0.65mm | 4000mm | 1150 g/m2 | 1080/750N/cm | -140-260℃ |
9090AJ | brown | 0.90mm | 4000mm | 1550 g/m2 | 1500/1250N/cm | -140-260℃ |
9090BJ | black | 0.90mm | 4000mm | 1650 g/m2 | 1500/1250N/cm | -140-260℃ |
