PTFE Coated Fiberglass

Availability:
Quantity:

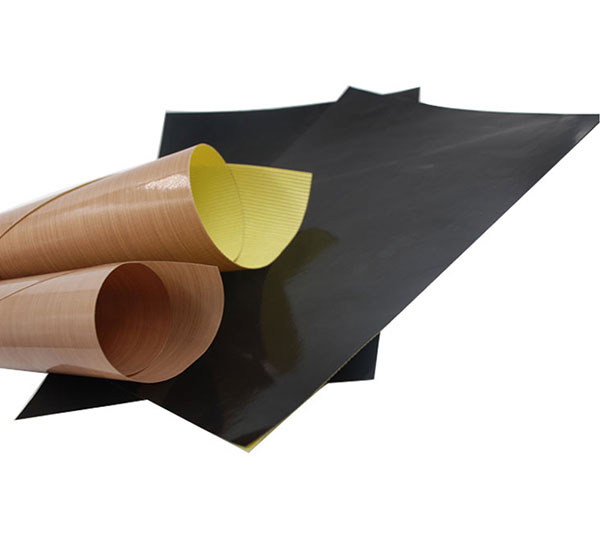

PTFE Coated Fiberglass

PTFE coated fiberglass with adhesive backed tapes are high performance products that offer excellent release characteristics whilst being able to cope with extreme temperature. They are manufactured with a high temperature resistant surface in pressure sensitive silicone adhesive or non adhesive formats.


Product Details:

PTFE coated fiberglass with adhesive backed tapes are high performance products that offer excellent release characteristics whilst being able to cope with extreme temperature. They are manufactured with a high temperature resistant surface in pressure sensitive silicone adhesive or non adhesive formats.


PTFE adhesive tapes are often used as a release tape for the protection of sealing jaws and heat-sealing wires on equipment such as bag and L- sealing machines. They can also be found in vacuum and blister packing operations too.


Single surface treated and coated with a high-temperature-resistant, silicone, with pressure-sensitive adhesive coated on back side.VICHEN products can be supplied as long rolls as in picture.

Yellow release liner is applied to the adhesive surface for ease of application and protection long lifetime of fresh adhesive.


We use 100% Dow Coring silicone adhesive which guarantees super high temperature resistance.

Self-wound rolls self adhesive PTFE tape are available (without liner).


Model

Thickness

Max Width

Length

Model

Temperature

mm

mil

Range

Range

VK7008

0.13

5.1

1250mm

10-100m

VK7008

-70-260C

VK7013

0.18

7.0

1250mm

10-100m

VK7013

-70-260C

VK7015

0.20

7.8

1250mm

10-100m

VK7015

-70-260C

VK7018

0.23

9.0

1250mm

10-100m

VK7018

-70-260C

VK7020

0.25

9.8

1250mm

10-100m

VK7020

-70-260C

VK7025

0.30

11.8

1250mm

10-100m

VK7025

-70-260C

VK7030

0.35

13.7

1250mm

10-100m

VK7030

-70-260C

VK7035

0.40

15.7

1250mm

10-100m

VK7035

-70-260C
