PTFE Coated Breathable Fabric

Availability:
Quantity:

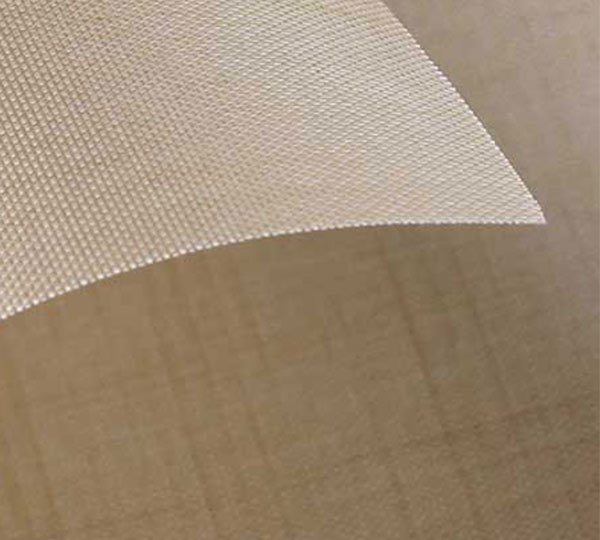

PTFE Coated Breathable Fabric

We use best imported fiberglass as the weaving material to plain knit or superior fiberglass basic cloth; coat it with fine PTFE resin then make it into various PTFE breathable fabric in different thickness and widths.


Product Details:

1. Good air permeability.The surface is smooth, the cloth grain is clear, the size is stable, does not deform.

2. Breathable and uniform; without delamination and dust return.

3. Resistance to high temperature, abrasion and corrosion; Instant can reach 200°C, 150°C or so under the constant temperature.

4. Use of high quality heat and corrosion resistant synthetic fiber; long service life, easy installation.


P/N

Color

Thickness
(mm)
±5%

Base-cloth
(g/㎡)

Total weight
(g/㎡)

Tensile strength
(N/5cm)≥

Tearing strength
(N/5cm)≥

Warp

Weft

Warp

Weft

9008T

White

0.065

48

70

500

460

6

6

9010T

White

0.095

105

130

820

800

10

10

9013AJ-T

Brown

0.11

105

140

950

850

18

18

9025T

Brown

0.2

205

275

2000

1800

80

80

9040A

White

0.31

283

385

1900

1400

120

100
